6-Channel Wireless Relay Module ESP-12F (RM6W)
450.00 EGP

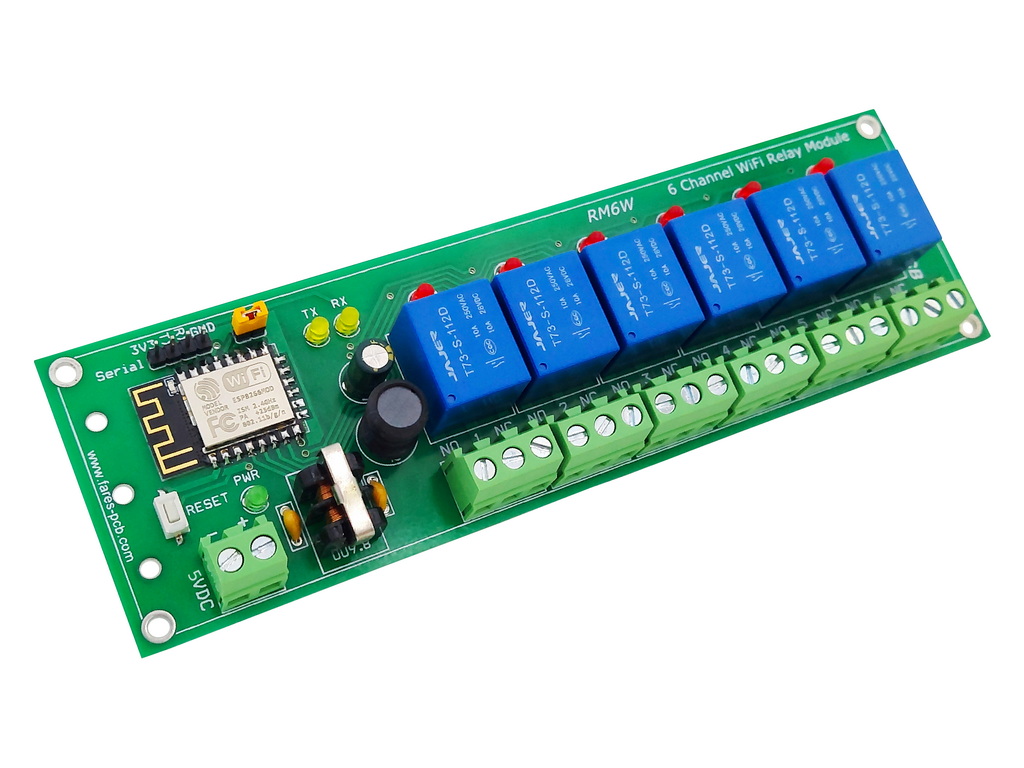

The RM6W is a 6-channel Wi-Fi module based on the ESP-12F module which is based on the ESP8266 chip from Espressif. The ESP-12F includes 4MB of flash and supports 802.11b/g/n Wi-Fi SOC. The ESP-12F can be programmed serially via the 4-pin header. The card is well-protected, filtered, and easy to install. The RM6W outputs can drive loads up to 10A (resistive load).
Features:
- Based on ESP-12F Wi-Fi module.
- On-board 3.3V regulator AMS1117-3.3V.
- Power input is filtered for noise reduction.
- Green LED for power indication.
- Operating voltage DC12V.
- Six output relays with red LED indicators.
- Both normal open and normal close terminals are available.
- Output terminals are available through a 5mm 2-pin K128 screw clamp.
- Easy firmware uploading using a 4-pin header ( 3.3V, Tx, Rx, GND ).
- Reset push button switch is included.
- Two yellow LEDs for Tx and Rx signal indication.
- DIN Rail mountable.
- Four (Ø 3.5mm) mounting holes for easy installation.
- Dimensions: 165 X 50 X 18mm.
Additional information
| Weight | 0.108 kg |
|---|---|
| Mounting | Mounting Holes, PCB Carrier, PCB Bracket |
