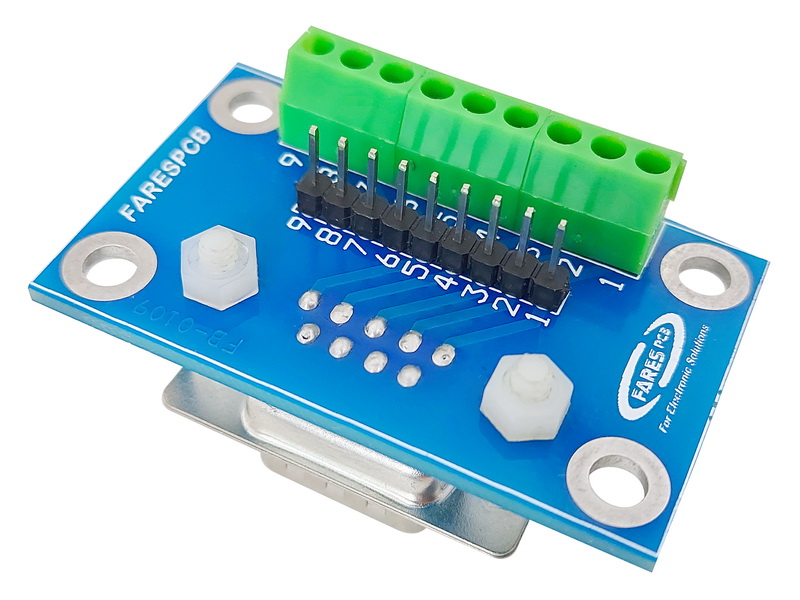

DB9 Vertical Male to Screw Terminal + Pin Header
50.00 EGP
DB9 male socket vertical type on PCB to block terminals and pin header facilitates solderless connection to standard serial connector DB9 and is also suitable for panel mounting and test applications.
Features :
- DB9 pins are routed to pin headers and screw clamp terminals.
- Both terminals are labeled according to the DB9 pin number to which they are routed.
- Pin header pitch distance 2.54mm.
- Screw terminal pitch distance 3.5mm.
- Four (Ø 3.5mm) mounting holes for easy installation.
- Dimensions: 50 X 30 X 25mm.
